Motor Talkie Bluetooth Headset

There are not available yet as the initial samples I received I tried and worked extremely well BUT I advised would not last a week with the average Bikie as they were not built strong enough so they are re designing them ! when they will be available I dont know Asian manufacturers seem to run on a strange time/delivery system
I am looking at an Alternative manufacturer whos product looks more robust than this

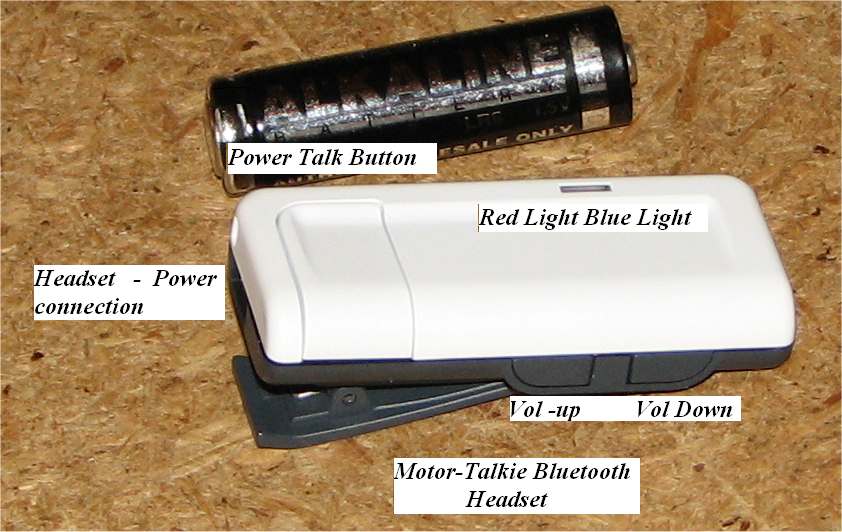

This is a Bluetooth module/headset that enables those who have Bluetooth function on their cell phone to use the cellphone wirelessly and handsfree whilst riding their motor cycle ,The bluetooth module is not waterproof is best kept within the pocket of ones jacket ,or if externally, in a small plastic bag to protect it from rain and showers . The unit has an operative time of about 7 Hours with an average charge time of 2 hours approximately.The module is easy to use and is able to 'answer" calls and intitiate them , although the Number called is restricted to the last Number that was dialled on the cell phone . Charging is via a mains powered plug pack and through the same female socket that the headset uses.

User Menu

Turning on Headset

Press and hold down the Power/Talk button for 2 seconds. - Once the Blue Lights turn on, release the Power/Talk button. and The Blue Light blinks 5 times with “Do Mi Sol Do” melody heard in the headset if powered on successfully.
Turning off Headset While headset is on, press and hold down the Power/Talk button for 4 seconds. The Red Light blinks 5 times with “Do Sol Mi Do” melody if headset is powered off successfully. Note: If headset has not paired before, it automatically enters pairing mode. When headset is in pairing mode, the Blue Light and Red Light blink alternately.

When you power up the headset for the first time, it doesn’t have any paired information.( doesn’t know who to connect to) , So it enters the registration mode .
However if you want to register another phone, you need to put headset back into registration mode.
.
Headset Pairing
Before you pair your headset you need to put it into registration-mode^
Registration mode is entered simply by pressing Power/Talk button for 2 seconds. ( The Blue and Red Lights are blinking alternately and the headset is now in pairing mode and will remain in pairing mode for 1 minute, as It may take several seconds to establish connection.
Mobile phone Pairing ( Perform a “ device discovery” from the mobile phone. (For details on device discovery consult your phone user guide.)
Please Note: It may take several seconds to establish connections. When your phone menu prompts you, the phone will start to pair the headset with the phone (the device ID is now stored in the phone’s memory). Enter the password “ 1234”, Your phone screen will advise that pairing has been successful. . Once the headset and phone have successfully paired, the Blue Lght blinks 10 times Rapidly
Making a call
Place the headset in your helmet and put your helmet on ,  when you press the Volume Up button the Mobile phone will recall the last call you made, . . To make the call, press Volume Up button once more. the Cell phone initiates the call.
Receiving/Answering a call
Auto Answer :   Have your mobile phone in auto receiving mode. ( see your phone handbook on how to do this) the call will be automatically answered and relayed to the bluetooth module .
Manual Operation: When Mobile phone is ringing, a ring tone will be heard, You can answer the call by pressing the headset’s Power/Talk button.
Ending a call from the headset

When Riding: if the phone is set to auto answer ,the call will be terminated when the caller hangs up , : To end a call manually , press Power/Talk button. After ending a call, and the Blue tooth headset goes into standby mode.
Changing volume level

You can control the volume of the Phone call during answering , by pushing the Volume Up button or Volume Down. Button , there is more than enough volume in this module !! An audible tone is played when either the minimum or maximum volume has been achieved.

Charging your Bluetooth Module
The module receives charging power through the headset socket, Unplug the headset cable from the module and plug in the charging plug ( having plugged the charger into mains power and switched it on !) the red light on the module may blink slowly , charging is automatic and will usually be complete in about two hours . you should get around 7 Hours of use from a charge depending on how loud you have the modules volume

We are working on two options for this unit, one a dedicated K series headset connection and Two,a connection cable that enables one to plug it into the Motortalkie for use with bluetooth enabled phones that dont have any external earphone/microphone connection such as the MOTOROLA RAZAR V3.

Have Fun with your Bluetooth cellphone module ,Its use will open a whole new aspect to the fun of motorcycle riding But remember when riding, your No. 1 priority is motorcycle safety . if in doubt pull over to the side of the road where it is safe if you have to do any adjustments to this module , you can always ring them back later! your phone will have remembered the Number ! TWO seconds of inattention could mean that was the last phone call you will ever answer !!

we do not yet have the ability to do Bluetooth wireless rider to pillion but watch this space
