Digital VCR 4 channel Security model
This is an advanced 4 channel standalone digital video recorder, that combines video multiplexing, digital video recording in a single easy to use and install package. It can be easily installed into your existing surveillance system since it provides 2 composited video signal outputs to connect CCTV monitor directly. The friendly operations avoide from wasting time to familiarize yourself with extremly complicated DVRs.
■
FEATURES:
1. Full Screen Recording and Playback To record and play back high
quality full screen pictures.
2. Two Recording Modes Available – the DUAL mode and the QUAD mode,
In the DUAL mode, the user can monitor the live pictures or play back the
recorded pictures from single channel or all channels simultaneously. In the
QUAD mode, the live pictures or the recorded pictures are displayed in quad
format only.
3. Play back at the simple touch of one button. Users just press the playback key twice to start playback.
4. Extended recording time by connecting a second internal HDD up to 120GB total !
5. Extend recording time through motion detection this avoids unnecessary recording, users are able to select the cameras to be in motion detection mode
6. Security Lock This restricts operating or changing the settings without permission.
■ SPECIFICATIONS
|
Item |
Descriptions |
|
|
Video Input Format |
NTSC/PAL |
|
|
Video Input Channel |
4 channels |
|
|
Video Looping Channel |
4 channels |
|
|
Video Output (3 outputs) |
Output 1: 1Vp-p/75Ω; Output 2: 1Vp-p/75Ω; Output 3: Y/C |
|
|
Display |
NTSC |
Real Time |
|
|
PAL |
Real Time |
|
Recording Rate |
NTSC |
Real Time. Adjustable |
|
(Quad Mode) |
PAL |
Real Time. Adjustable |
|
Recording Rate |
NTSC |
60 fields per second / 4 channel |
|
(Dual Mode) |
PAL |
50 fields per second / 4 channel |
|
Recording Schedule |
Auto Continuous/ Sensor Alarm / No Recording |
|
|
Resolution |
Display |
520 TVL. NTSC: 720 x 480; PAL: 720 x 576 |
|
|
Recording |
520TVL. NTSC: 720 x 480; PAL: 720 x 576 |
|
Language |
English / Chinese |
|
|
Simplex |
Yes |
|
|
Compression Format |
MJPEG |
|
|
Hard Disk (IDE type) |
120GB HDD x 2 in maximum (2 internal HDD ) |
|
|
Back-up (Archive Device) |
, VCR |
|
|
Search |
Date, Time, camera |
|
|
Playback Speeds |
1x, 2x, 4x, 8x |
|
|
Post-alarm Recording Duration |
30/25/20/15/10/5 Secs. |
|
|
Alarm Duration |
Continous/30/25/20/15/10/5/0 Secs. |
|
|
Alarm In/Out |
4 x Inputs (NO, NC, Not Installed), 1 x Output |
|
|
Motion Detection |
Yes |
|
|
Video Loss Alarm |
Yes |
|
|
Password Protection |
For HDD format |
|
|
Power Interrupt Recovery |
Automatic Recovery |
|
|
Power Supply |
AC type: 90~260Vac switching power, 33Watts DC type: 12Vdc ! ,
33 Watts |
|
|
Operation Temperature |
-10˚C ~ 45˚C |
|
|
Dimensions (W x D x H) |
430 x 265 x 44.4 mm / 17 x 10.5 x 1.75 inch |
|
|
Net Weight (without HDD) |
4.7 Kg |
|
rear of unit showing connections
close up of external alarm triggers Note this unit will operate on 12 Volt !!!

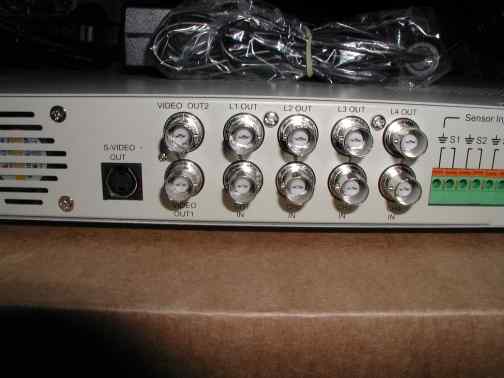

Video BNC connections for camera and monitor and "S Video" output
These units are sold without hard drives as the hard drive capacity is so dependant on the customers requirements , ie recording frame speed , resolution , etc , we can supply hard drives, ask us about this .
price : NZ$ 850.00 plus gst and postage (NO HARD DRIVE!!!)
