This is a simple plug-n-play unit that allows for convenient monitoring of multiple areas through CCTV cameras and a base switcher unit that automatically triggers a domestic VCR to begin recording if motion is detected in a monitored area. The system is ideal for residential homes and small businesses.

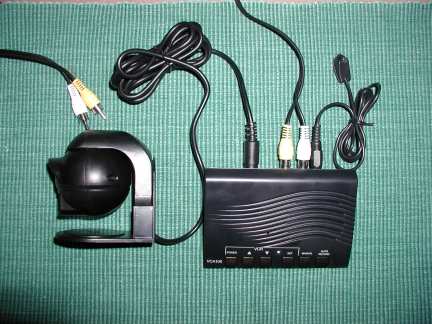

PACKAGE Contents:
( 1) VCA100P with Power Adapter

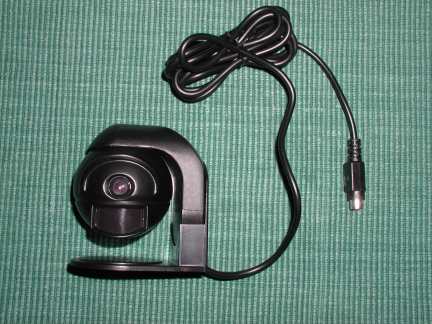

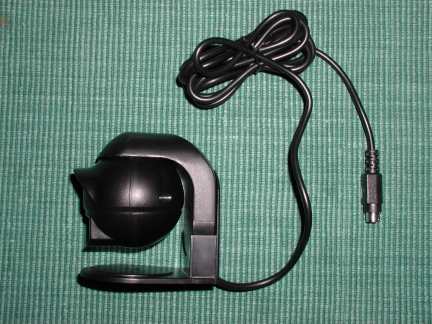

(1) PAL Colour Camera with Motion PIR Detector ~ (Black and white camera is available )
(1) IR Blaster
(1) Dual RCA Cable for video and audio
(1) 60' of camera Cable
(1) Camera Installation Hardware Kit ~
(I) Installation Guide
The VCA100P allows you to connect up to two cameras to your television or video cassette recorder (VCR) enabling you to record or monitor several different areas.
This is the IR Blaster ( infra red signalling diode ) it must be in front of the VCR
Simple to install and operate ~
Automatic audio alert when motion is detected
Automatically triggers the VCR to begin recording if motion detected
Automatic switching mode allows camera to switch from one camera to the next
Adjustable automatic switching time between cameras
Manual camera select
LED indicator shows status at all times
1. The VCA100 should be connected to Audio Input sockets on your TV or VCR.
i.e. VCR audio/video inputs connect to the VCA100 audio/video outputs
2. To utilize the auto record function, the VCA100 must be connected to the spare AV sockets on the VCR.
3. Connect the IR Blaster to the VCA100 ,
A. You can connect 1 or 2 cameras to the VCA100. Please note that if one cameras is used then it must be connected to the Camera 1 socket.
B. If you wish to add or remove a camera, please disconnect the power before making changes.
4. To program the VCR code; first attach the IR blaster to the front of the VCR, the best place is to have it pointing at the VCR display. (Make sure the VCR is powered and turned on).
5. At the same, time press both the `Power' & `SET' button on the front of the VCA100.
The RED LED next to the `SET' button should turn on. step through the protocols with the up and down buttons, When you find the correct matching VCR code, the VCR will automatically turn off.
s. If the VCR does not turn off, try the up then down arrows to search for the correct VCR code. (there are over 70 different protocols!) When the VCR turns off, confirm you have the code by pressing the 'POWER' button, which should turn the VCR back on again. If so press the "SET" button to store the code.
7. You can now use `POWER'; `UP' and 'DOWN" buttons to turn the VCR on/off and change it's TV channel.
8. The Auto/Manual buttons allow you to switch between the two cameras.
C. Pressing both at the same time adjusts the cycle time between cameras from 2-30 seconds.
l. The switching time is factory set to 4 seconds, If you wish to change the switching time, simply press both buttons on the front display (MANUAL & `AUTO RECORD)
2. The length of time that both buttons are held for will set the automatic switching time. i.e. if you hold both buttons in for 12 seconds, the cycle switching time will be set for I2 seconds.
3. The maximum automatic switching time is 30 seconds.
Setting the VCA100 to trigger the VCR to auto record when the camera detects motion
Set the VCA100P to the correct protocol to control the VCR so you can turn it off and on
Pressing and holding the `AUTO RECORD button cycles between: ·
(GREEN LED FLASHING) ****** will work !!Auto Record Mode ON
(STEADY GREEN LED) ******* wont work !!Auto Record MODE OFF
NOTE: Upon detecting motion, there is an audio alert that will sound ,the loudness of which can be controlled by the volume control on the side of the VCA100

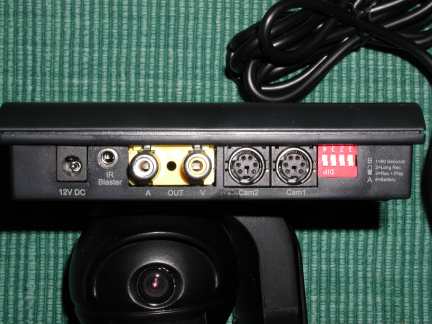

Dip Switch Settings
Switch 1 Video length after the detected motion stops:
A: System will record up to 30 seconds after motion stops
B: System will record up to 60 seconds after motion stops
Switch 2
A: Short (.5 Sec's) record signal (Normal~
B: Long (2 Sec's)
Note: This option addresses how long it takes your VCR to begin recording when triggered by the VCA100, It is very rare, but some older VCR's require you to hold the record button for 2 seconds before it begins recording. This is to prevent "false" recording starts.
Switch 3
A: Record signal only. (Normal)
B: Record followed by PLAY
It is very rare, but some older VCR's require you to press PLAY after you
press RECORD. This is to prevent "false" recording starts
Switch 4
A: Activates battery backup for VCR Code if power is lost (Desirable)
B: Battery backup is not enabled.
HELPFUL HINTS:
The CCTV Cameras are suitable for indoor and outdoor use.
Please bear in mind the following points when choosing a mounting position:
· The Camera Motion Sensor should not be more than 20 feet from where motion will occur.
· The lower the Motion Sensor the closer it may need to be to the monitored area. ~ Ideal height for the Motion Sensor is 6 - 8 feet.
Before mounting and installing the cameras, we recommend that you temporarily connect the cameras to the VCA100 so that you may then choose the best camera viewing position,
· Cameras should not be pointed directly into the sun or any bright light, as this may cause damage to the camera.
· Avoid areas where half the area is in bright sunlight and the other half is dark, such as in the shadow of a building. large light variations make it difficult viewing for the camera,
· Unless you are using a night vision camera, avoid low light areas.
~ Avoid mounting the camera close to trees or bushes which, when they move, may cause a false alarm and triggering of the VCR and thus wasting tape!.
· Please note that the VCA100 will power the CCTV cameras. The cameras do not require their own power supply,
FREQUENTLY
ASKED QUESTIONS:
HOW FAR CAN THE CAMERAS BE PLACED FROM THE VCA100P ?
The cameras come with 60 feet of cable, but you can buy additional extension cords. Ideally, the cameras should not be more than 300 feet from the VCA100.
HOW FAR AWAY CAN THE MOTION SENSOR BE FROM 'THE MOVEMENT?
The Motion Sensors should not be more than 20 feet from where motion is expected to occur, however, the lower the Motion Sensor the closer it may need to be to the monitored area. Ideal height is 6~8 feet.
CAN I PLACE THE CAMERAS OUTDOORS?
Yes, the Cameras are designed to be indoor or outdoor units.
TROUBLESHOOTING:
REMEDIES
The VCA00p does not trigger the VCR to turn on !
l. Check to make sure the options on the back dip switchs are properly set
2. Check to make sure the cameras are plugged into the VCA100
3. Check to make sure the VCA100 has power and is on
4. The VCA100 will NOT Automatically trigger the VCR into record during movement UNLESS the “auto record” green light is slowly blinking ( not just on! ) try pressing the "Auto record" button again to toggle its function.
TECHNICAL SPECS:
Operating voltage l2Vdc:
Current consumption: 30mA (without cameras connected
Camera video input: PAL, SECAM, NTSC, CCIR & EIA 75 composite video signal compatible
Camera audio input: 2V pk~pk at a 47K load
Dimensions: 5" W x 1.25" H x 3.75" D
Power supply input voltage: 230v AC
Output voltage: 12 V DC
Output current: 300mA
Operating temperature -10C to +40 C
: Package weight: 2.2 lb
The VCA100
(PAL cameras supplied ) will control two cameras sequentially, we are looking at obtaining
extra cameras as an option. When we have done this, we will place a price
for an extra camera on this web page.
Compatibility.~ Video recorders: IMPORTANT
We do not guarantee this unit will control ALL domestic Video Cassette Recorders, however It seems it will control most of the modern units. Please note that this product may not be compatible with some combined TV/Video recorders due to the differing control codes used by their manufacturers.Price $250 plus gst (freight extra)
Pinfold Health Services Ltd,1172 Arawa St, Rotorua 3201,New Zealand. ph +64-7-3488850 fax +64-7-3486555 pinfold@xtra.co.nz
