LCD Television 3.5" and 5.0"
These TV are brilliant they provide a good clear crisp picture on good strength signals ( like all TV's feed them a weak signal and they produce a noisy picture.
Technical Parameters
Product: LCD Color Television Receiver
Receiving Channels: VHF-L: CH 1 ~5 48.25MHZ~91 .75MHZ;
VHF-H: CH 6-12 168.25MHZ~222.75MHZ
UHF: CH 13-57 471.25MHZ~869.75MHZ
All Additional CATV Channels: Z 1-27 (112.25MHZ - 166.75MHZ)
Z8-Z35 (224.25MHZ - 446.75MHZ)
Display device: Color TFT-LCD
Sound System: BG ( available in DK ,I,M)
Screen Size: 3.5 inches
Audio Output: 200MW (Max) Loudspeaker: one 4.Ocm round loudspeaker
Connecting Terminal : External antenna input jack (Belling Lee socket), earphone jack, audio/video (AV)input jack, external power supply input jack, assembled battery charge jack
Application Power Supply: three options
1.AC power supply AC adapter. Please check the label on your AC adapter to see whether it agrees
with local AC power supply.
2.Automobile storage battery ( 12V) Automobile adapter
3.Assembled battery. To use power supply from assembled battery,
just insert the DC plug of assembled battery (i.e. TV base support) into the DC jack on TV set,
and push the charging switch onto CHARGE position.
Power Consumption: about 8W
Outer Dimension: W 143mm X H 120mm ~C T 23mm Weight: about 395g
Dot Pitch: 0.149 (H) X 0.225(V)
Resolution: 480 (H) X 234 (V)Response Time(ms): R: 30 / F: 50
Viewing Angle: U: 15 / D: 35, R/L: 50
Brightness: 200cd/m2
Contrast: 150:1
FM Receiver 88-108 MHz . press button to scan radio stops on
next available frequency press scan to jump to the next channel

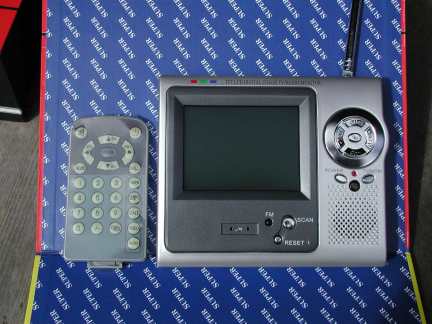

The 3.5" TV comes with a very comprehensive Remote controller ,Base
support with battery case, AV connection cable, Automobile adapter, 75 ohm
antenna connection , earphone . They do not have a 230 v to 12 volt at 1
amp ( centre positive) AC adapter supplied.

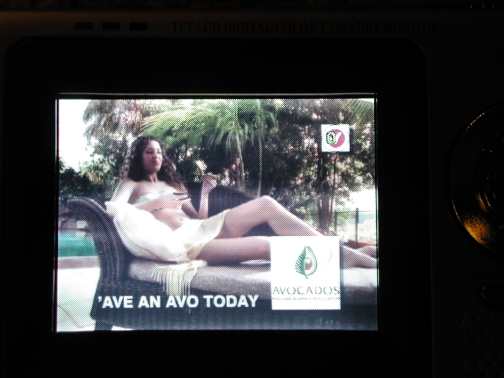

This is an actual live shot off the TV with a digital camera while an advertisement was running. This picture, although quite good as a still, doesn't do justice to the actual quality of the received picture, it is really very good! !
price: NZ $299.00 plus gst freight extra
click here to view 5.0" LCD TV
Pinfold Health Services Ltd.,1172 Arawa st,Rotorua 3201,New Zealand. ph +64-7-3488850 fax +64-7-3486555 pinfold@xtra.co.nz
